Smart Lighting accessories

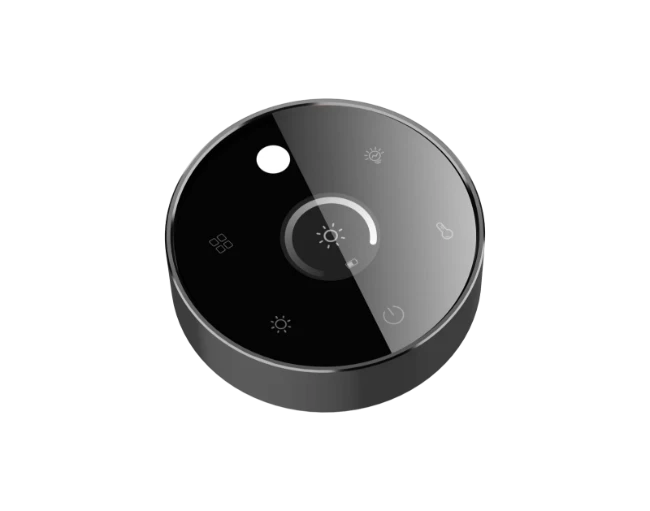

LEDSmart-BLE2-Light-Wizard

Product Code
822008000200
  • Compact input module for use in the OPPLE Smart Lighting System
  • Enables the use of conventional push-button switches to control Smart Luminaires
  • Turn Smart luminaires on/off, dim+/-, CCT+/- and activate scenes with a push of a button
  • Including temperature- and humidity sensors
  • Small enough to install behind the wall switch

Specifications

Electrical data

Integrated DALI power supply No

Capabilities

Communication Opple Bluetooth® Low Energy Mesh
Sensor technology No sensor
Sensor type No sensor

Certificates and standards

Degree of protection (IP) IP20
Min. lifespan battery 2 Year
Width 74 mm
Height 23 mm
Diameter 74 mm
Application temperature 25°C
Storage environment -25|50°C
Operating temperature -25|50°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
694149177978285365005CT10.143 x 0.113 x 0.055 m0.26 KG

Downloads
